Details

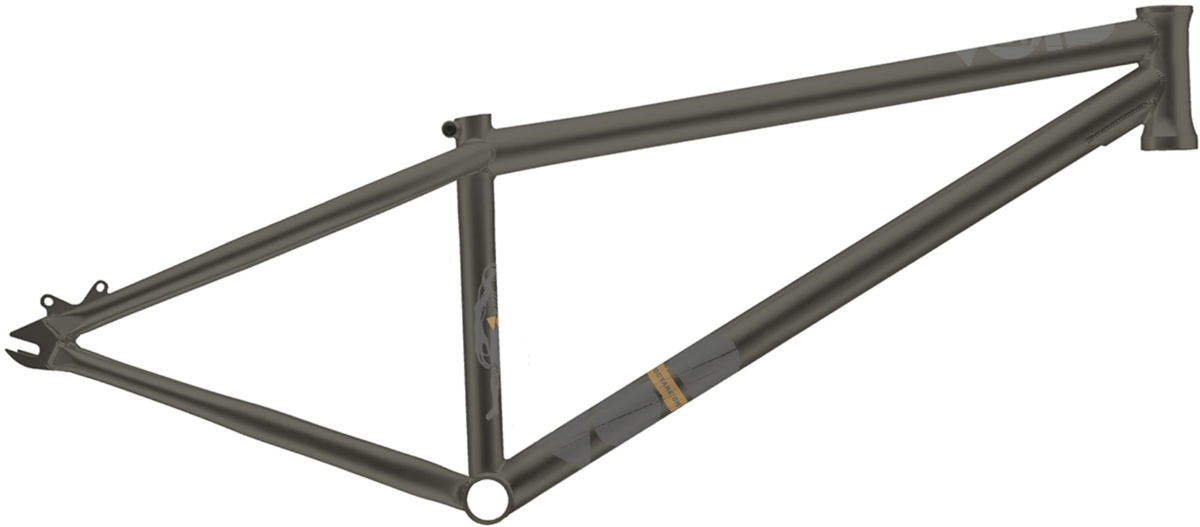

The Void is a steel dirt-oriented frame designed to work with 26” wheels. Custom butted tubes, beefed up in the stress areas keep the weight low and strength high. Additionally The Void is a steel dirt-oriented frame designed to work with 26” wheels.
Custom butted tubes, beefed up in the stress areas keep the weight low and strength high. An additionally reinforced top tube/seat tube junction is tough enough to survive abuse from tailwhips and 360’s.
The Void is an advanced frame made from high-quality double-butted 4130 Chromoly steel. Same proven strength as last year.
MAIN FEATURES
- Recommended fork travel: 80-140mm or rigid forks ~435mm
- Compatible with all forks with 1&1/8” (1.125”) steer tube
- 27.2 mm seat post / integrated seat clamp
- 3M removable cable guides available separately
- Actual top tube length is 22.2", and the head tube is 4.5" long
- Horizontal 10x135mm OL dropouts, integrated seat clamp
- Adjustable caliper angle 51mm International Standard disc brake mount (185mm max)
- Fits up to a 34t ring depending on crank/BB/chain line used
- Recommended for use with 80-140mm travel forks (angles shown with a 140mm fork), 26" wheels, 2.35" tire max
- Optional bolt-on derailleur hanger available separately (not included)
- Weight: 5.6 lbs / 2.55 kgs
Axle to Crown (mm) | 440 |
---|---|
Reach (mm) | 415 |
Stack (mm) | 531 |
Top Tube (mm) | 565 |
FC (mm) | 626 |
Chain Stays (mm) | 380 |
Wheelbase (mm) | 1006 |
Seat Tube (mm) | 311 |
HT Length (mm) | 115 |
HT Angle | 71.5° |
BT Angle | 71.8° |
BB Drop (mm) | -18 |
Specs
Frame | Custom butted 4130 cromoly |
---|---|
Fork | Sold Separately |
Bottom Bracket | Standard threaded 68mm (compatible with MTB cranks and BMX cranks with Euro BB) |
Brakes | Disc brake only |
Headset | Tapered integrated headset (IS42/IS52) |
Pedals | Sold Separately |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Pigeon Blue / 12.2-inch | 02023000000618 | 01P-165 | |
Sand / 12.2-inch | 02023000000625 | 01P-166 | 210000067499 |
Black / 12.2-inch | 02023000000601 | 01P-164 |
