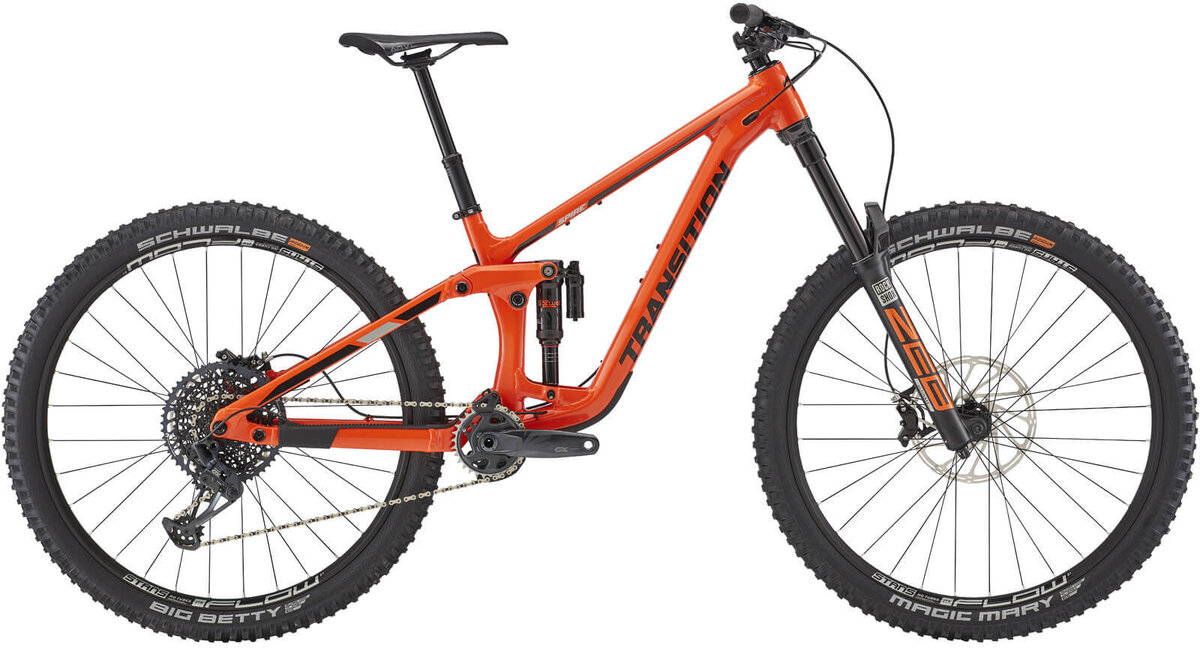

Transition Spire Alloy GX (Factory Orange) Code

Take on the biggest terrain without the penalty, Long travel doesn’t have to mean single purpose
The Spire blends DH bike capability with mid-travel efficiency in such a way it’s almost two bikes in one. A delicately tuned pedaling and pumping platform, super supple beginning stroke sensitivity and all the travel you could ask for makes for a mind bending ride. Happily climb up to your favorite challenging descent, then cruise on over to your local flow trail and you’ll be rewarded on both ends of the spectrum. Don’t be fooled though, while it’s no one-trick pony, the Spire lives to push your limits. Get in-Spired.


XT Carbon GX Carbon XT Alloy GX Alloy
FRAME Spire Carbon 170mm Spire Carbon 170mm Spire Alloy 170mm Spire Alloy 170mm
REAR SHOCK "Fox Float X2 Factory
2 Position (205x65)" "RockShox Super Deluxe
Ultimate Air (205x65)" "Fox Float X2 Factory
2 Position (205x65)" "RockShox Super Deluxe
Ultimate Air (205x65)"
FORK "Fox Float 38 Grip 2 Factory
170mm Travel/44mm Offset" "RockShox ZEB Ultimate
170mm Travel/44mm Offset" "Fox Float 38 Grip 2 Factory
170mm Travel/44mm Offset" "RockShox ZEB Ultimate
170mm Travel/44mm Offset"
HEADSET FSA NO.55R/57 FSA NO.55R/57 FSA NO.55R/57 FSA NO.55R/57
STEM ANVL Swage (40mm) ANVL Swage (40mm) ANVL Swage (40mm) ANVL Swage (40mm)
HANDLEBAR "ANVL Mandrel Alloy 35
SM (800x20)
MD/LG/XL (800x30)
XXL (800x40)" "ANVL Mandrel Alloy 35
SM (800x20)
MD/LG/XL (800x30)
XXL (800x40)" "ANVL Mandrel Alloy 35
SM (800x20)
MD/LG/XL (800x30)
XXL (800x40)" "ANVL Mandrel Alloy 35
SM (800x20)
MD/LG/XL (800x30)
XXL (800x40)"
GRIPS ODI Elite Flow ODI Elite Flow ODI Elite Flow ODI Elite Flow
SADDLE ANVL Forge Cromo ANVL Forge Cromo ANVL Forge Cromo ANVL Forge Cromo
SEATPOST OneUp Dropper Post OneUp Dropper Post OneUp Dropper Post OneUp Dropper Post
BRAKES Shimano XT M8120 SRAM Code RSC Shimano XT M8120 SRAM Code RSC
ROTORS Shimano RT86 (203mm) SRAM Centerline (220mm/200mm) Shimano RT86 (203mm) SRAM Centerline (220mm/200mm)
SHIFTER Shimano XT M8100 SRAM GX Eagle Shimano XT M8100 SRAM GX Eagle
DERAILLEUR Shimano XT M8100 SRAM GX Eagle Shimano XT M8100 SRAM GX Eagle
CASSETTE Shimano XT M8100 (10-51t) SRAM XG 1275 (10-52t) Shimano XT M8100 (10-51t) SRAM XG 1275 (10-52t)
CHAIN Shimano XT M8100 SRAM GX Eagle Shimano XT M8100 SRAM GX Eagle
CHAINGUIDE OneUp Bash Guide OneUp Bash Guide OneUp Bash Guide OneUp Bash Guide
CRANK Shimano XT M8100 (30t/165mm) SRAM GX Alloy DUB (30t/165mm) Shimano XT M8100 (30t/165mm) SRAM GX Alloy DUB (30t/165mm)
RIMS DT Swiss EX 1700 Spline 30 Stans Flow S1 DT Swiss EX 1700 Spline 30 Stans Flow S1
SPOKES DT Swiss Competition Sapim Race Double Butted DT Swiss Competition Sapim Race Double Butted
HUBS DT Swiss 350 Straight Pull 36SL Stans Neo Durasync DT Swiss 350 Straight Pull 36SL Stans Neo Durasync
TIRE/FRONT Schwalbe Magic Mary, Super Trail, Soft (29x2.4) Schwalbe Magic Mary, Super Trail, Soft (29x2.4) Schwalbe Magic Mary, Super Trail, Soft (29x2.4) Schwalbe Magic Mary, Super Trail, Soft (29x2.4)
TIRE/REAR Schwalbe Big Betty, Super Trail, Soft (29x2.4) Schwalbe Big Betty, Super Trail, Soft (29x2.4) Schwalbe Big Betty, Super Trail, Soft (29x2.4) Schwalbe Big Betty, Super Trail, Soft (29x2.4)
INCLUDED Tubeless Valves & Sealant Tubeless Valves & Sealant Tubeless Valves & Sealant Tubeless Valves & Sealant
WEIGHT 33.8 lbs / 15.33 kg (Size MD) 33.3 lbs / 15.1 kg (Size MD) 36.8 lbs / 16.92 kg (Size MD) 36.3 lbs / 16.46 kg (Size MD)
