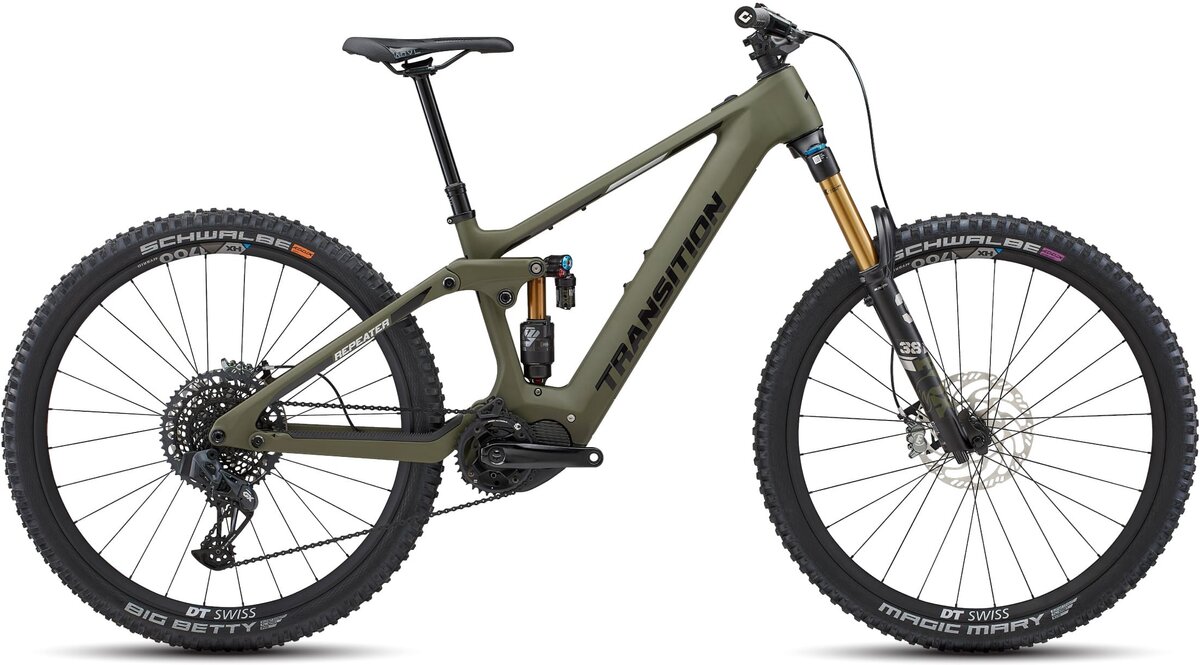

Transition Repeater NX

Transition Repeater NX
This item is currently not available.

Details

Details


Details

Up, down, all around.
The Repeater loves it all.

Buckle up and get ready to charge, the Repeater is down for anything. With 160mm travel, 29 inch wheels, the Shimano EP8 motor system, and a 630w battery, you can maximize fun on the ups and the downs. Whether it's a quick rip after work, ditching the shuttle truck, or just the pure joy of exploring that you are after, the Repeater loves it all. Like all of our other beloved bikes, the Repeater has SBG geometry and our GiddyUp suspension, so you'll feel right at home the moment you turn on the power.

Frame Specifications


REAR TRAVEL: 160mm
FRONT TRAVEL: 160mm
WHEEL SIZE: 29"
SIZES: SM, MD, LG, XL
COLORS: Mossy Green
FRAME BEARINGS: 2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900
FORK AXLE TO CROWN: 576mm
FORK OFFSET: 44mm
REAR SHOCK SIZE: 205mm x 65mm
SHOCK HARDWARE: Trunnion Mount Top / 25mm x 8mm Bottom
HEADSET (TOP): 56mm Zero Stack (For Internal Cable Routing)
HEADSET (BOTTOM): 66mm Zero Stack (Fits 1.5 or 1.8 Steerer)
CHAINLINE: 53mm
REAR BRAKE MOUNT: 180mm Post Mount, Max Rotor Size 223mm
DERAILLEUR HANGER: SRAM UDH
REAR AXLE: Transition Axle For UDH, 12mm x 148mm Spacing
ISCG TABS: Shimano STEPS Chain Guide Mount
SEATPOST
DIAMETER: 31.6mm
SEAT CLAMP: 37.0mm
MAX SEATPOST
INSERTION: Small 225mm | Medium 250mm | Large 290mm | X-Large 320mm
MAX CHAINRING
SIZE: 38 Tooth
MAX TIRE SIZE: 29 x 2.6

REAR SHOCK SAG: 160mm/65mm: 18-22mm (28-34%)

Part Numbers

Option MPN Store SKU
Small 01.22.11.4750 210000067908
Medium 01.22.11.4752 210000067910
Large 01.22.11.4754 210000067912
X-Large 01.22.11.4756 210000067914
